Oil Filtration Products

Hydraulic and Transformer Oil Filtration, Purification & Dehydration Systems

Our Oil Filtration Range

Advanced filtration and dehydration solutions for hydraulic and transformer oils

Hydraulic Oil Filter Machine
Hydraulic Oil

Hydraulic Oil Filter Machine

High-performance hydraulic oil filtration system designed to remove contaminants, moisture, and particles from hydraulic oils. Extends oil lifespan and improves system efficiency.

  • Advanced particle filtration to 1 micron
  • High-vacuum dehydration technology
  • Removes moisture below 100 ppm
  • Processing capacity: 300-12000 LPH
View More

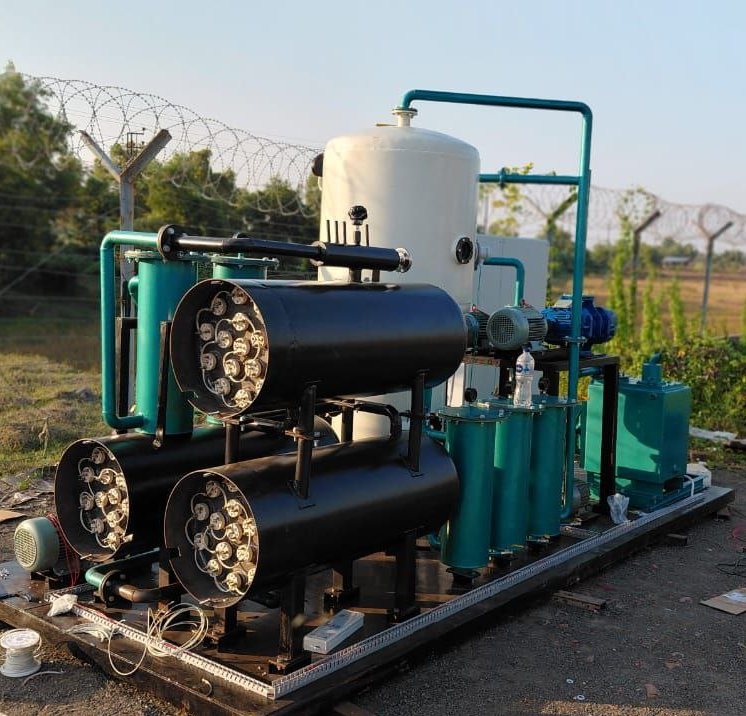

Transformer Oil Filter Machine
Transformer Oil

Transformer Oil Filter Machine

Specialized transformer oil filtration and dehydration system for maintaining transformer insulation oil quality. Removes contaminants and moisture to ensure reliable transformer operation.

  • ISO cleanliness: 15/13/10 or better
  • Moisture content: Less than 10 ppm
  • Extends transformer oil lifespan
  • Online and offline operation modes
View More

Technical Specifications

Detailed specifications for our range of oil filtration systems

Parameter 500LPH 1000/1200LPH 2000LPH 3000LPH 4000LPH 5000LPH 6000LPH 8000LPH 10000LPH 12000LPH 15000LPH 20000LPH
Total Power 10kW 20kW 30kW 51kW 65kW 90kW 120kW 130kW 150kW 192kW 230kW 250kW
Inlet Pump Gear Pump Gear Pump Gear Pump Gear Pump Gear Pump Gear Pump Gear Pump Gear Pump Gear Pump Gear Pump Gear Pump Gear Pump
Outlet Pump Gear Pump Gear Pump Gear Pump Gear Pump Gear Pump Gear Pump Centrifugal Pump Centrifugal Pump Centrifugal Pump Centrifugal Pump Centrifugal Pump Centrifugal Pump
Heater ~ 8.5KW ~ 16KW/18KW ~25kW (2 Groups) ~45kW (3 Groups) ~ 54 kW (3 Groups) ~72kW (3 Groups) ~ 96kW (3 groups) ~120kW (4 Groups) ~130kW (4 Groups) ~160kW (4 Groups) ~198kW ~220kW
Operating Temperature ~ 65°C Controlled ~ 65°C Controlled ~ 65°C Controlled ~ 65°C Controlled ~ 65°C Controlled ~ 65°C Controlled ~ 65°C Controlled ~ 65°C Controlled ~ 65°C Controlled ~ 65°C Controlled ~ 65°C Controlled ~ 65°C Controlled
Filter 3nos 1 micron 1µ(3) and 5µ(3) 1µ(4) and 5µ(4) 1µ(4) and 5µ(4) 1 µ(4), 5 µ(4), 10 µ(4) and 1 Bag 1 µ(4), 5 µ(4), 10 µ(4) and 1 Bag 1 µ(4), 5 µ(4), 10 µ(4) and 2 nos paper filter 1 µ(8), 5 µ(8), 2 µ(4) and 2 nos paper filter 1 µ(8), 5 µ(8), 2 nos paper filter and 1 bag filter 1 µ(16), 5 µ(16), 2 nos paper filter and 1 bag filter 1 µ(16), 5 µ(16), 2 nos paper filter and 1 bag filter 1 µ(24), 5 µ(24), 2 nos paper filter and 1 bag filter
Vacuum Pump 280LPM 280LPM 300LPM 600LPM 250 m³/h 65 m³/h 100 m³/h 200 m³/h 280 m³/h 300 m³/h 300 m³/h 300 m³/h d.stage
Booster Pump NA NA NA NA NA 250 m³/h 500 m³/h 1000 m³/h 1000 m³/h 1500 m³/h 1500 m³/h 1500 m³/h
Inlet and Outlet Hose pipe 1Ometer 2qty 1Ometer 2qty 1Ometer 2qty 1Ometer 2qty 1Ometer 2qty 1Ometer 2qty 15meter 2qty 15meter 2qty 15meter 2qty 15meter 2qty 15meter 2qty 20meter 2qty
Degassing Chamber Single Stage Single Stage Single Stage Single Stage Single Stage Double Stage Optional Double Stage Double Stage Double Stage Double Stage Double Stage Double Stage
Heater Stage Single Stage Single Stage Single Stage Double Stage Optional Double Stage Optional Double Stage Optional Double Stage Optional Double Stage Double Stage Three Stage Three Stage Three Stage
Panel Main Switch: L&T or Schneider Electric MCCB Main Switch: L&T or Schneider Electric MCCB Main Switch: L&T or Schneider Electric MCCB Main Switch: L&T or Schneider Electric MCCB Main Switch: L&T or Schneider Electric MCCB Main Switch: L&T or Schneider Electric MCCB Main Switch: L&T or Schneider Electric MCCB Main Switch: L&T or Schneider Electric MCCB Main Switch: L&T or Schneider Electric MCCB Main Switch: L&T or Schneider Electric MCCB Main Switch: L&T or Schneider Electric MCCB Main Switch: L&T or Schneider Electric MCCB
BDV Test >80 KV >80 KV >80 KV >80 KV >80 KV >80 KV >80 KV >80 KV >80 KV >80 KV >80 KV >80 KV
PPM Below 5 PPM Below 5 PPM Below 5 PPM Below 5 PPM Below 5 PPM Below 5 PPM Below 5 PPM Below 5 PPM Below 5 PPM Below 5 PPM Below 5 PPM Below 5 PPM
